R1 Radar Warning Module
Couldn't load pickup availability
Product Overview
Ride with a Sixth Sense.
Change lanes with confidence, day or night. The NextRide R1 brings advanced automotive-grade radar technology to your motorcycle. It acts as your digital co-pilot, constantly scanning the road behind you to eliminate the most dangerous aspect of riding: The Blind Spot.
Why You Need the R1
🛑 Mirrors Are Not Enough Helmet restrictions, body position, and vibration limit what you can see in your mirrors. Rain and fog make it even worse. The R1 sees what your eyes miss.

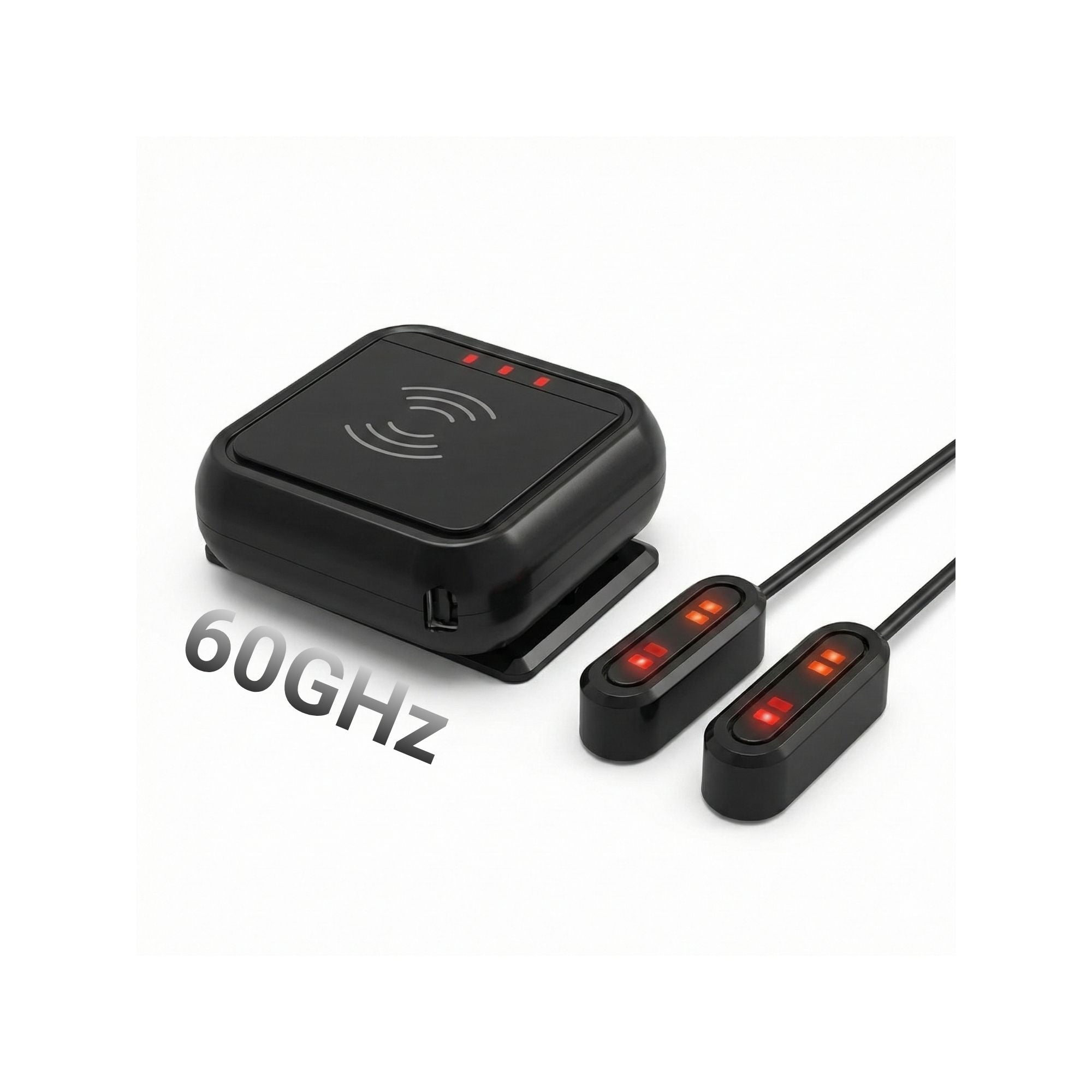

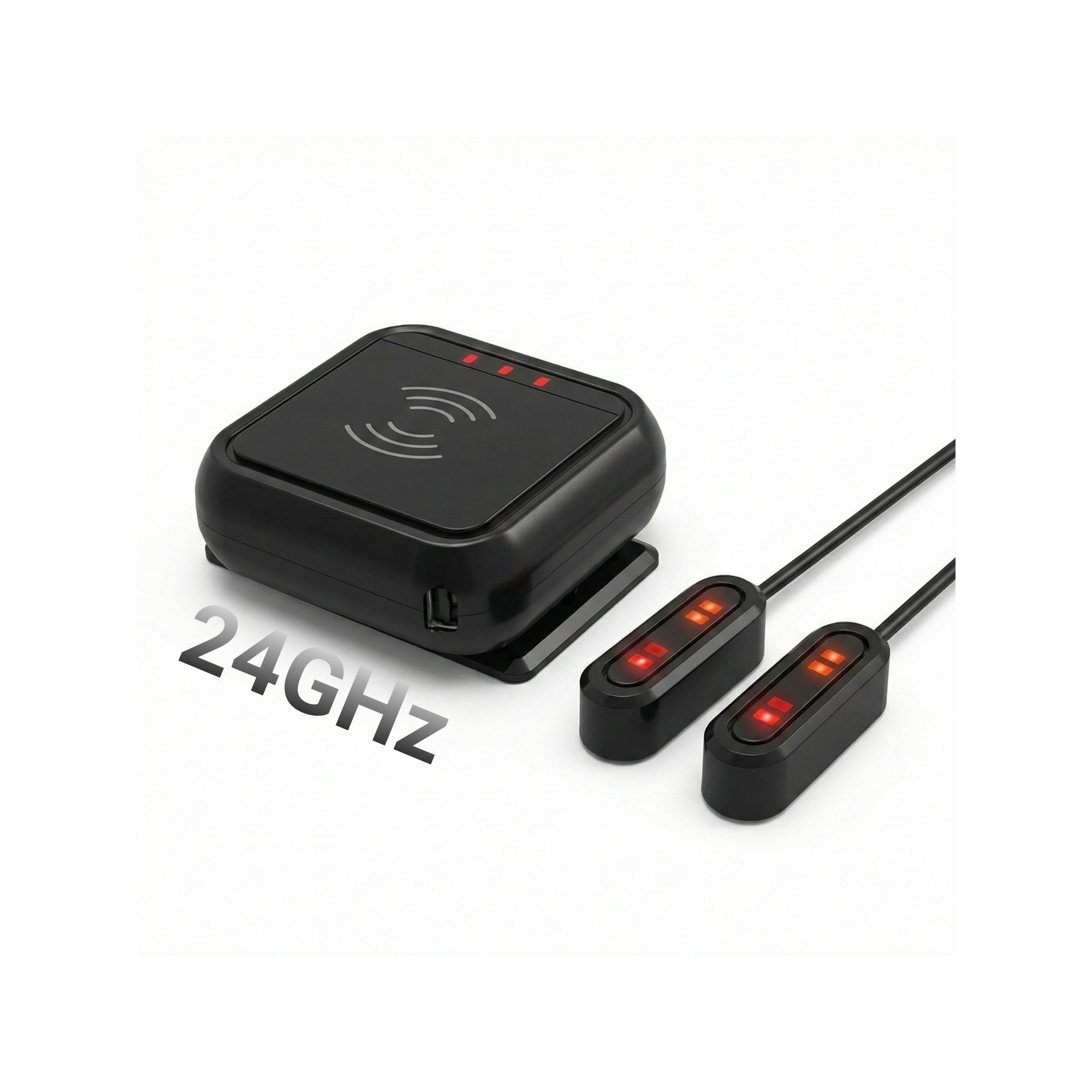

🌧️ All-Weather Precision Unlike cameras that can be blinded by headlights or obscured by mud and rain, our advanced Millimeter-Wave Radar (Available in 24GHz or 60GHz options) penetrates fog, heavy rain, and darkness to track moving vehicles with precision.
Key Features
30-Meter Detection Zone: The R1 continuously monitors a wide 120° field of view behind your bike, tracking three zones simultaneously: left, right, and directly rear. It detects vehicles approaching from up to 30 meters (98ft) away, giving you ample time to react.

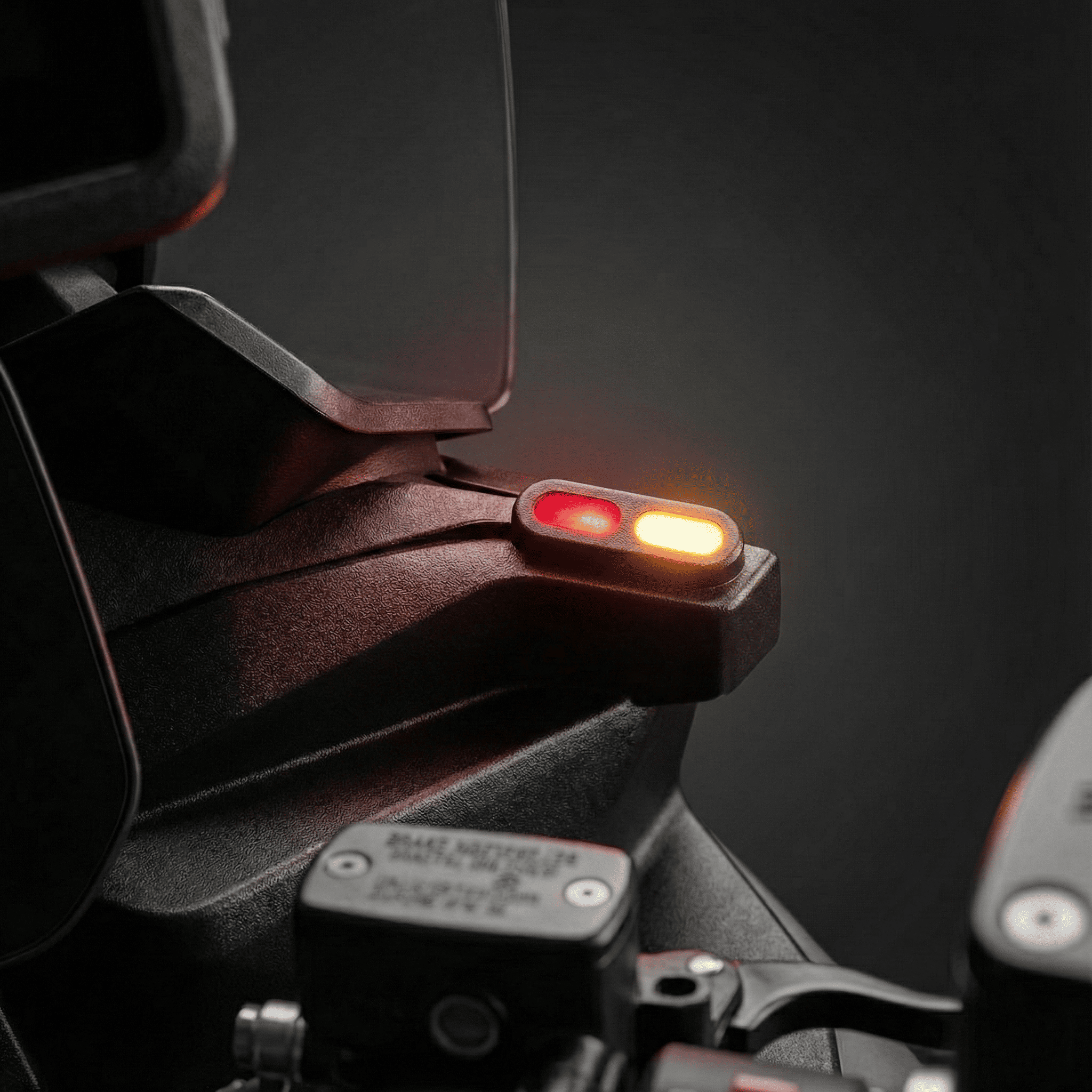

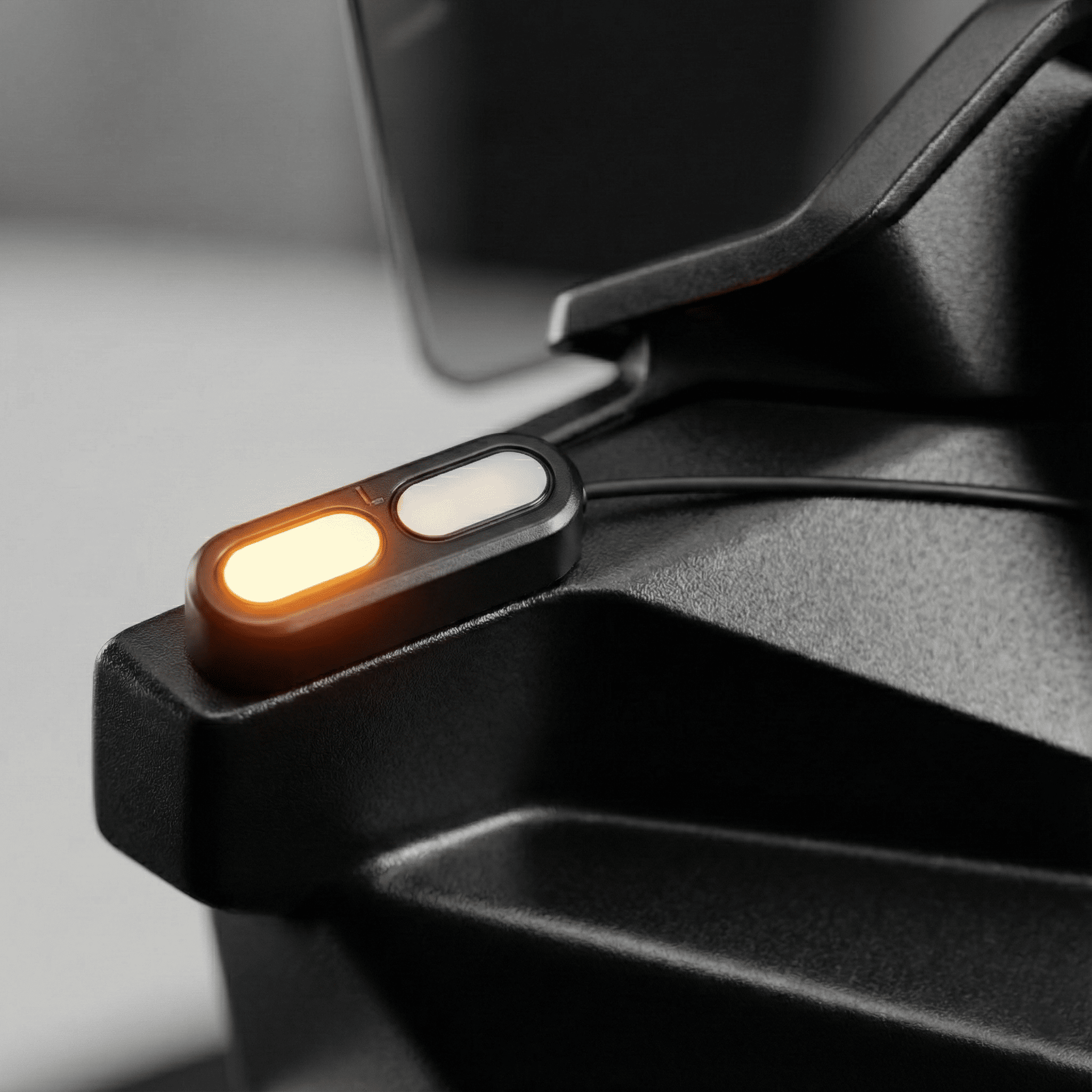

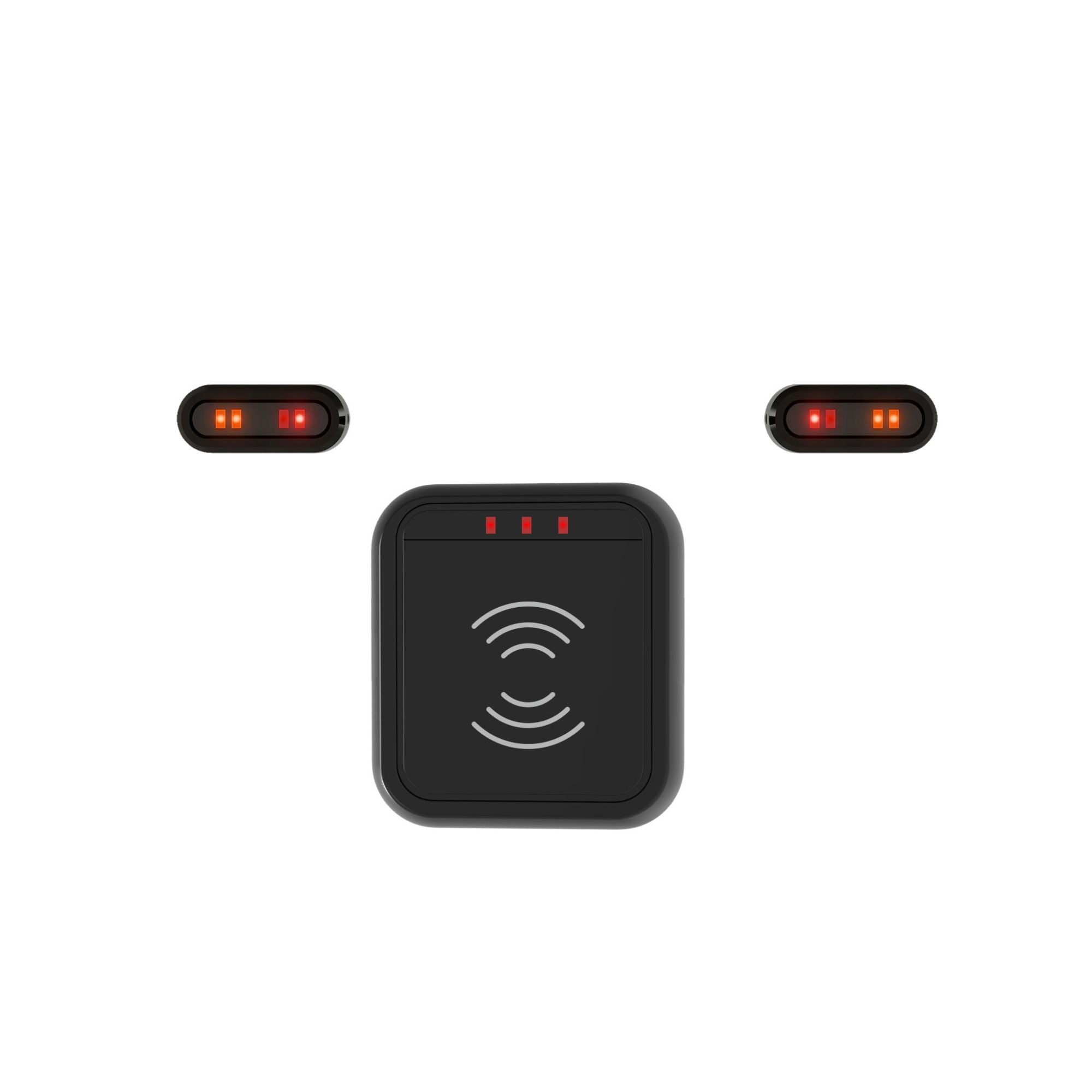

Intelligent Visual Alerts: Stay focused on the road ahead. Three discreet, high-visibility LED indicators (left, right, and rear) provide intuitive, color-coded warnings without distracting you from the road:
-
Side Blind-Spot Alert (Red): The corresponding left or right indicator illuminates when a vehicle enters your side blind spot.
-
Rear Approach Alert (Orange / Red): On the 24 GHz model, both side indicators flash orange when a vehicle approaches from directly behind. On the 60 GHz model, both side indicators flash orange twice for vehicles 30–13 m away (early warning), and the rear indicator flashes red three times when a vehicle closes within 13 m.
Always-On Status Indicator: The rear LED stays softly lit whenever the system is powered, giving you instant visual confirmation that your co-pilot is active. It flashes the moment a target is detected.
Smart ACC Power Management: Designed to protect your bike’s battery. The R1 wires directly into your motorcycle's ACC (Ignition) line. It powers on instantly when you turn the key and shuts down completely when you park—zero battery drain, ever.
Universal Fitment: Sportbikes, Cruisers, ADVs, Scooters, or Retros. If it has a license plate holder and a 12V battery, the R1 fits.
IP67 Waterproof: Ride through the storm. Both the main radar unit and the LED indicators are fully sealed and rated IP67 waterproof/dustproof.
Wide Operating Temperature: Engineered for –40°C to 85°C, so it performs from frozen mornings to desert summers.
Technical Specifications
| Specification | 24 GHz Variant | 60 GHz Variant |
|---|---|---|
| Radar Frequency | 24 GHz mmWave | 60 GHz mmWave |
| Detection Range (longitudinal) | 0 – 30 m | 0 – 30 m |
| Detection Width (lateral) | ±4 m | ±3.75 m |
| Detection Angle | 120° horizontal | 120° horizontal |
| Trigger Speed Range | 0.8 – 100 km/h | 7.2 – 130 km/h |
| Distance Accuracy | ±0.5 m | ±0.5 m |
| Reaction Time | < 2 seconds | < 2 seconds |
| Operating Temperature | –40°C ~ 85°C | –40°C ~ 85°C |
| Waterproof Rating | IP67 | IP67 |
| Input / Output Voltage | 12–24 V DC in / 5 V 2 A out | 12–24 V DC in / 5 V 2 A out |

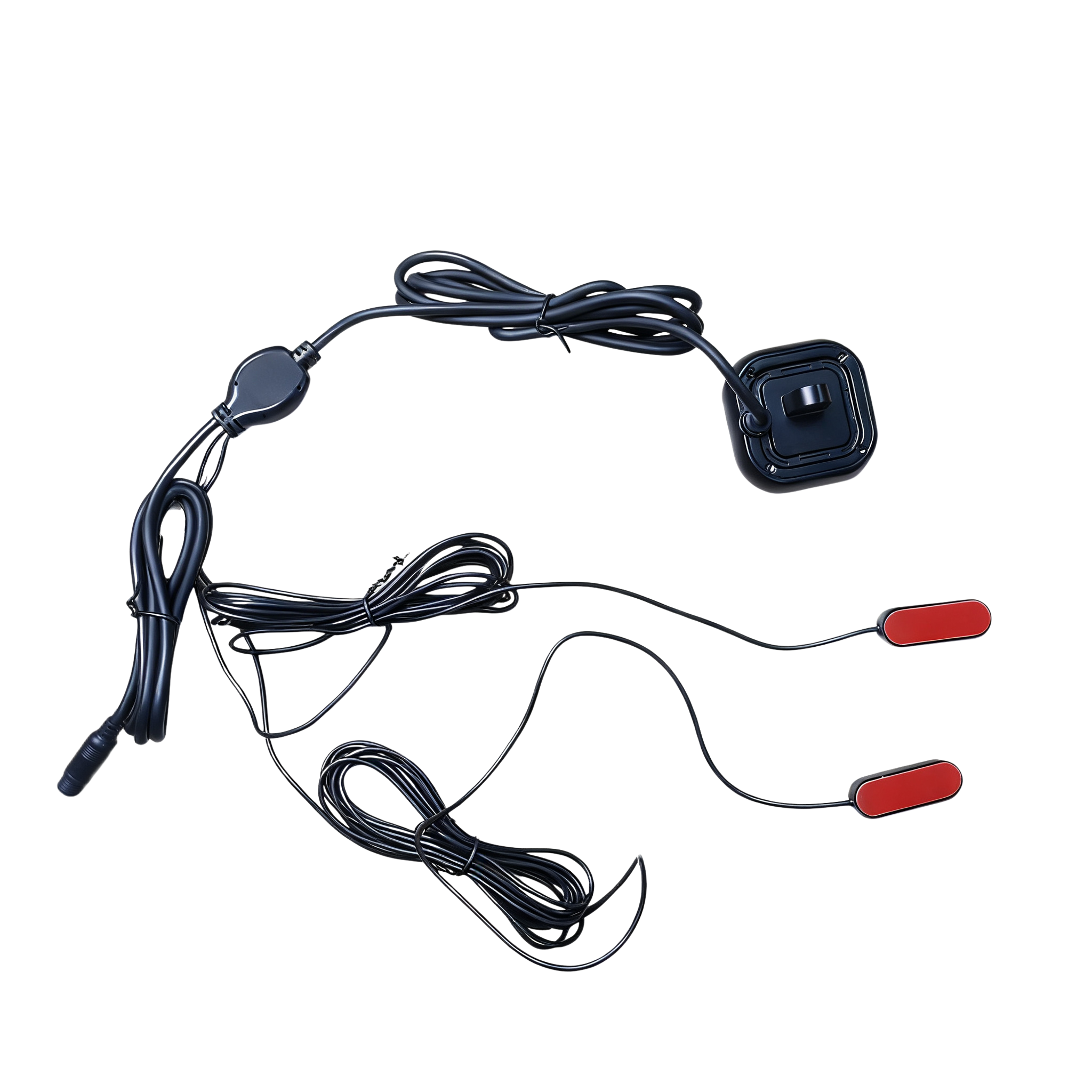

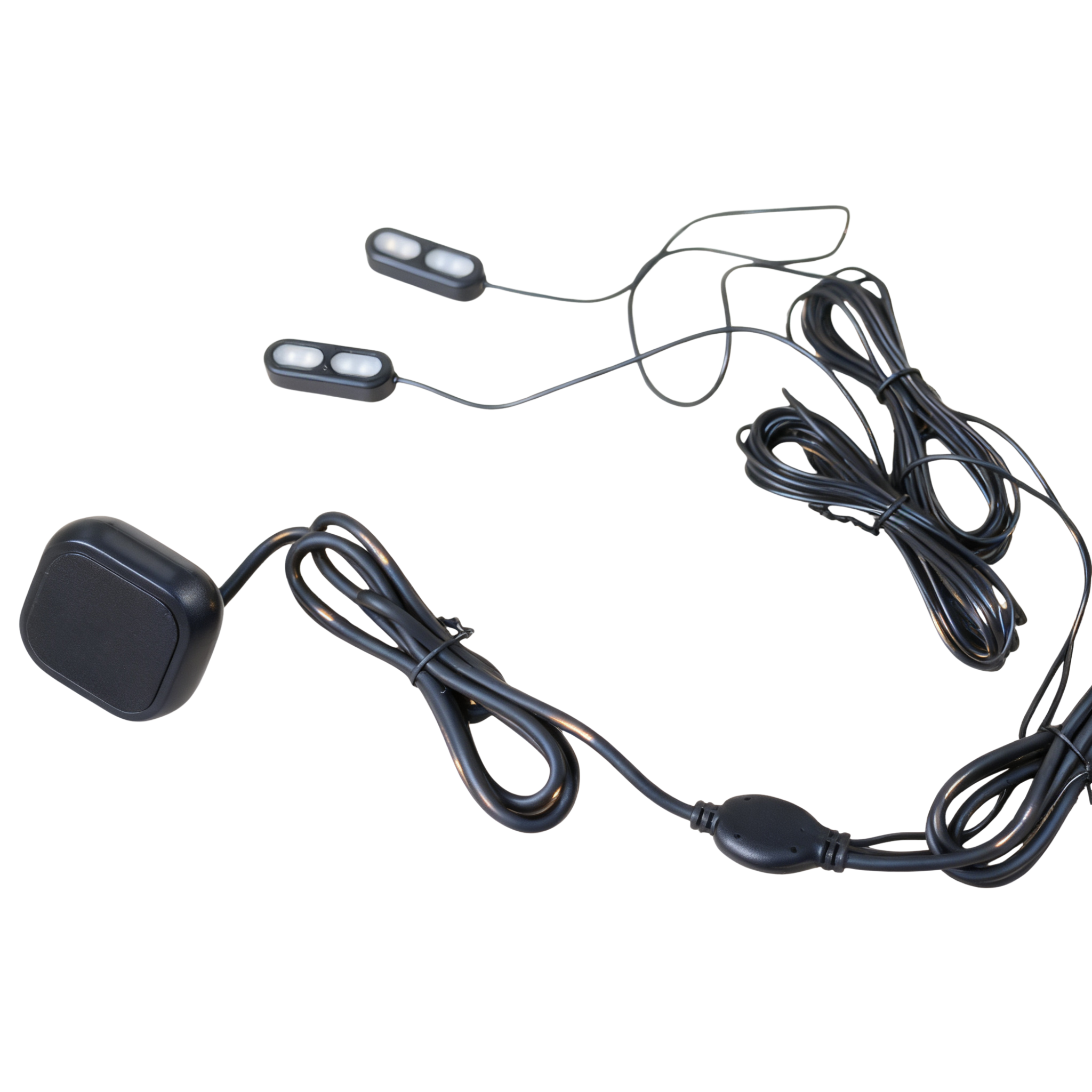

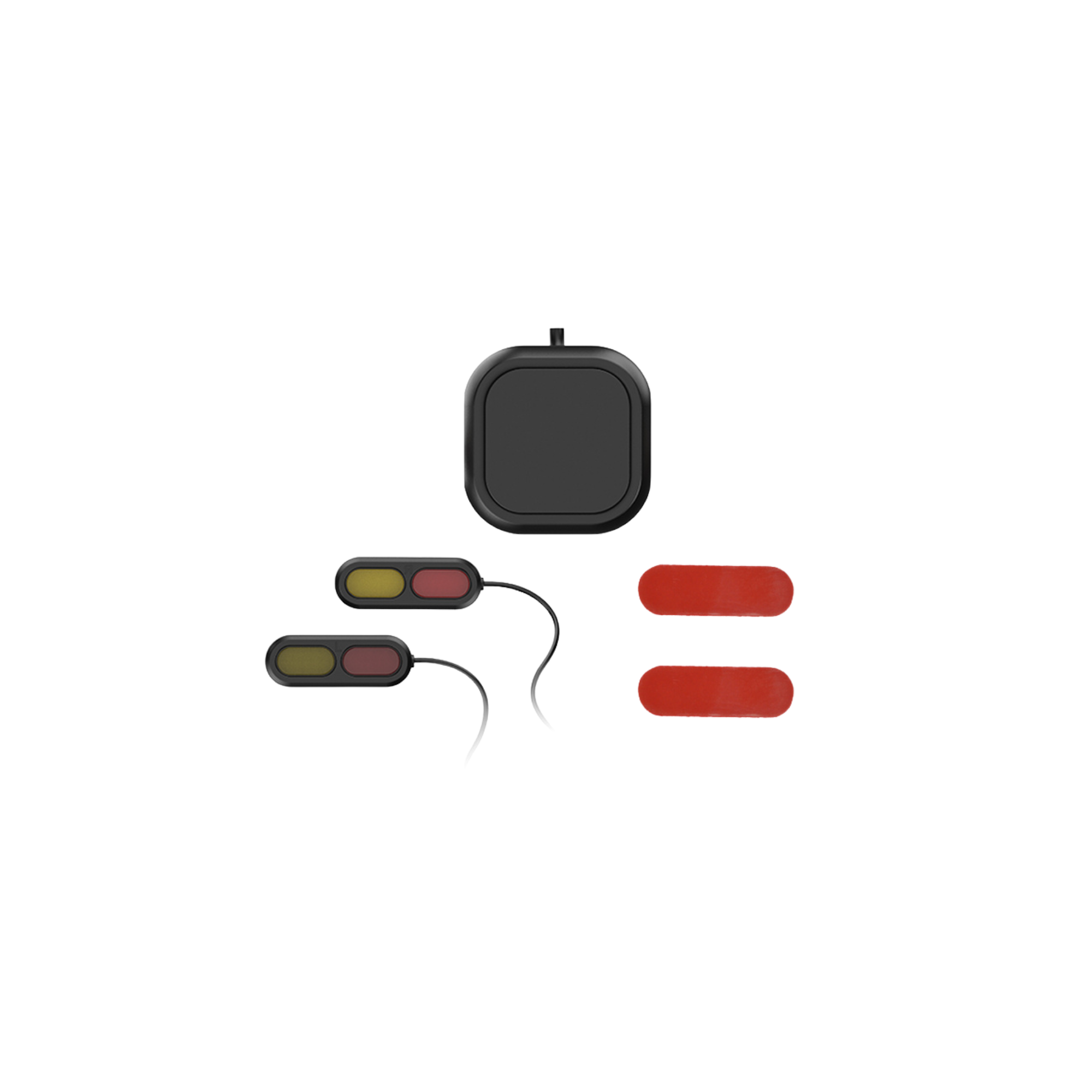

What's in the Box
-

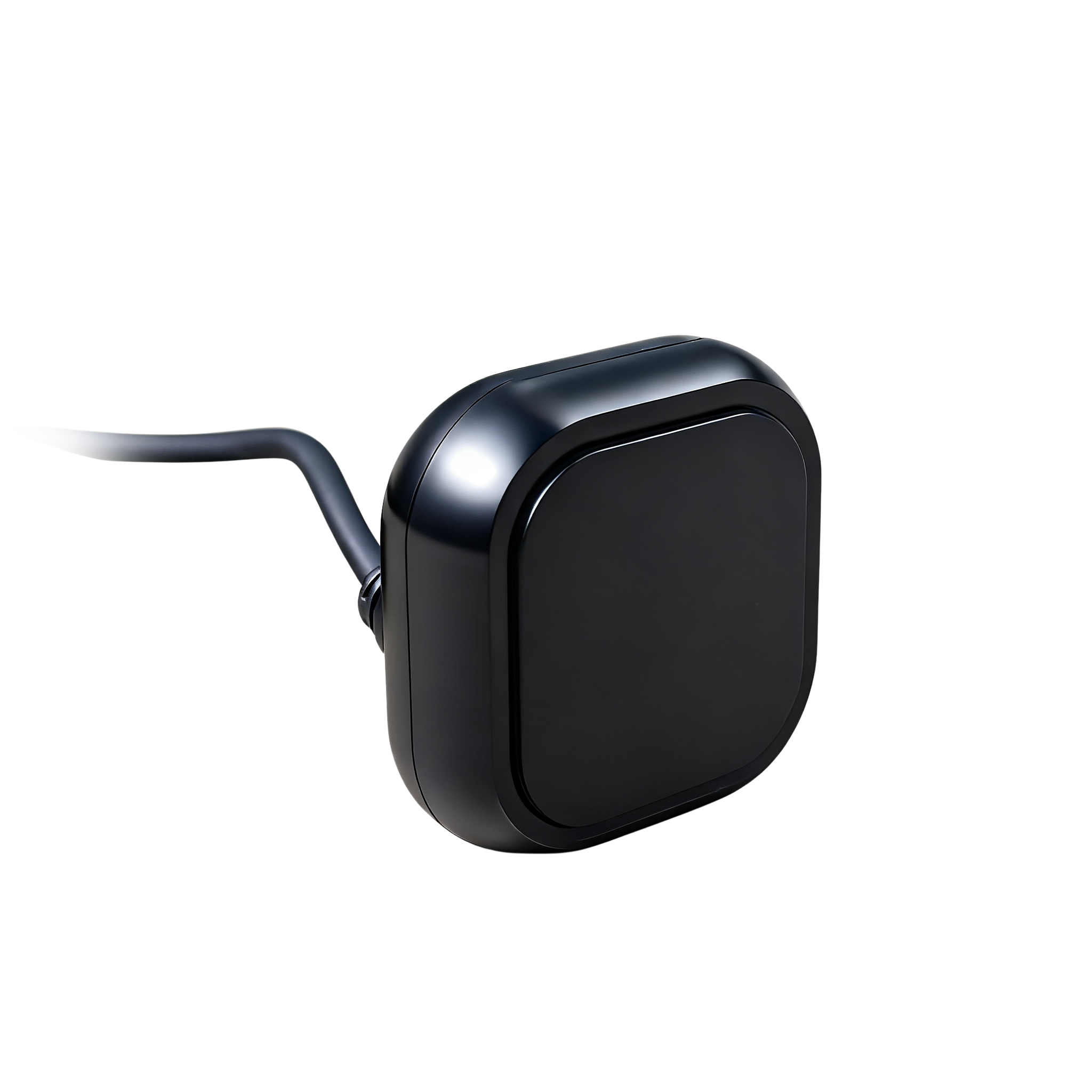

1x R1 Main Radar Unit
-
1x Radar Mounting Bracket
-
1x 3M Adhesive Pad for Bracket
-

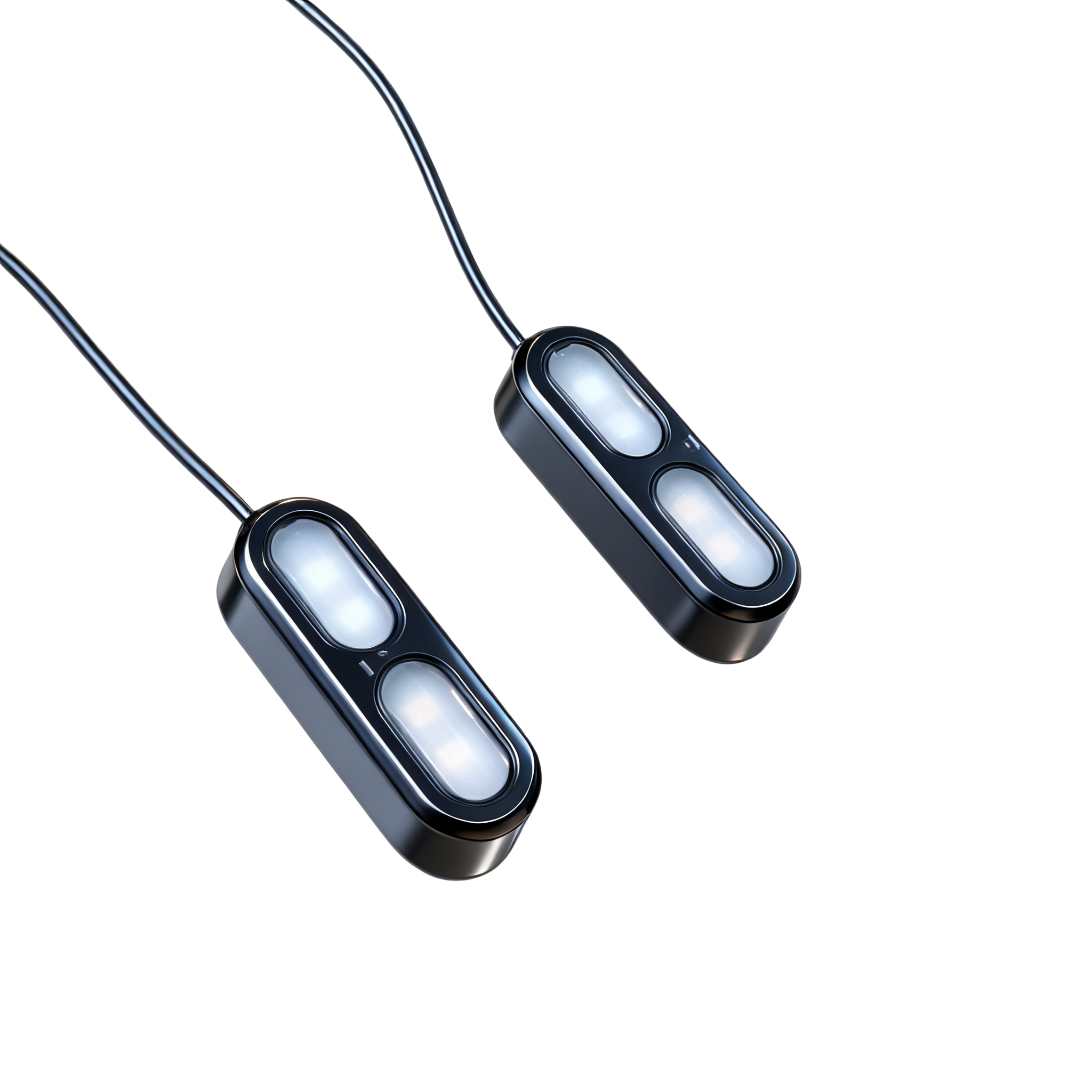

2x LED Warning Indicators (Left & Right) with Adhesive Pads
-

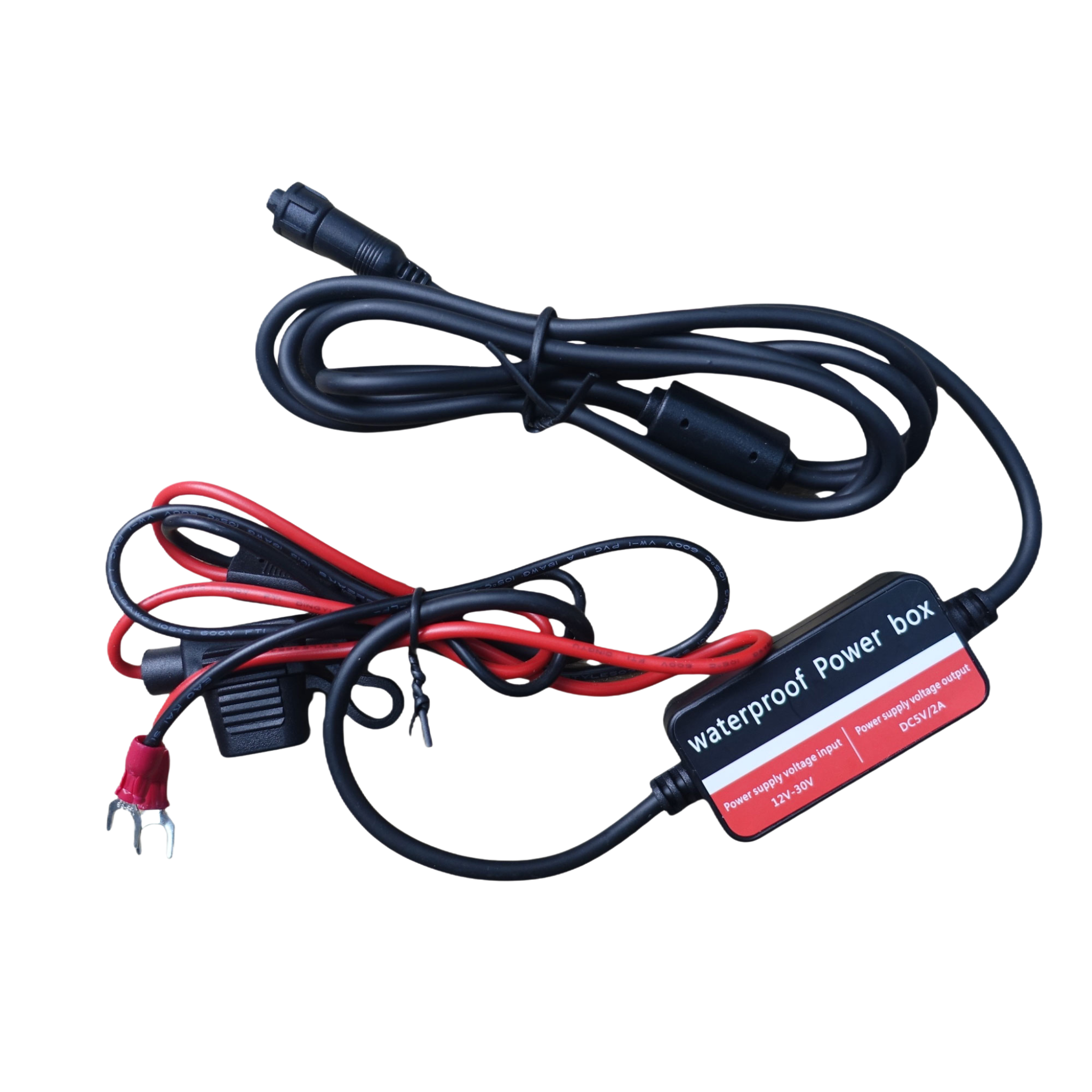

1x Power Hardwire Kit (ACC)
-
1x 5V USB Power Cable
-
1x Installation Tool Kit (Wrench, Nut, Screw)
- 1x User Manual
💡 Installation Tip

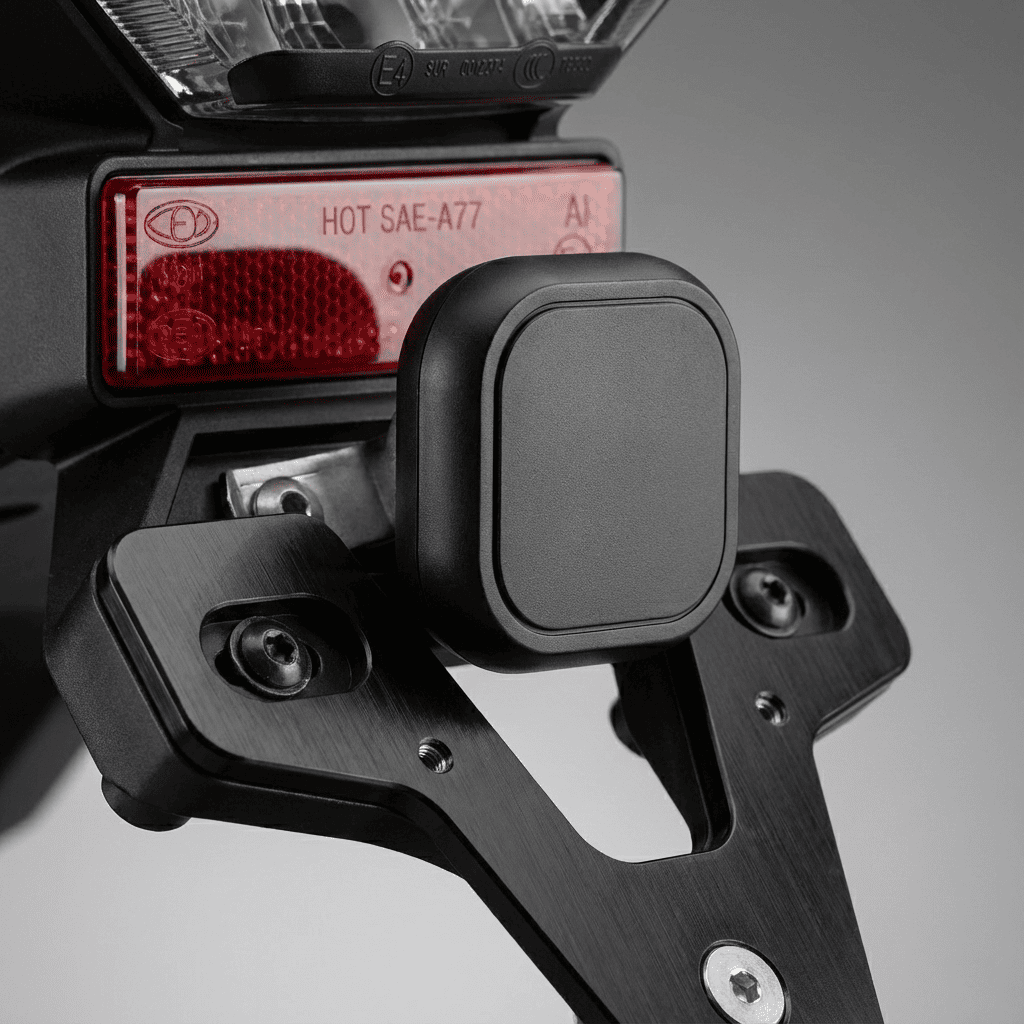

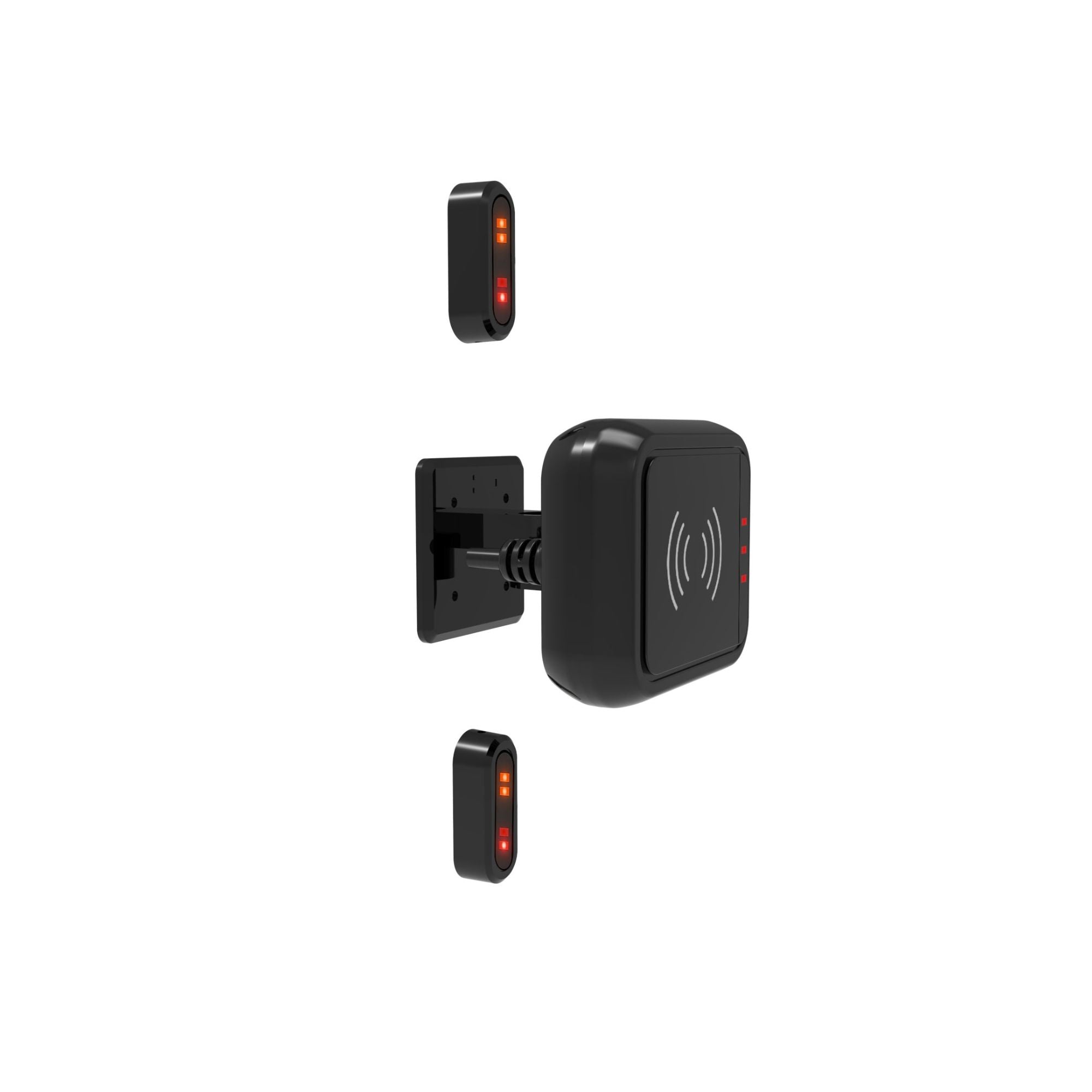

The R1 main unit mounts best on your rear license plate bracket or rear fender, installed vertically with the sensor face pointing directly backward and the indicator side facing up. Avoid obstruction by metal parts. The LED indicators can be stuck onto your side mirror stems, dashboard, or near the rear of the bike for easy visibility. Important: the left and right indicators must be installed on their corresponding sides — do not swap them.
